DeLuxe Intercom for ambitious motorcyclists

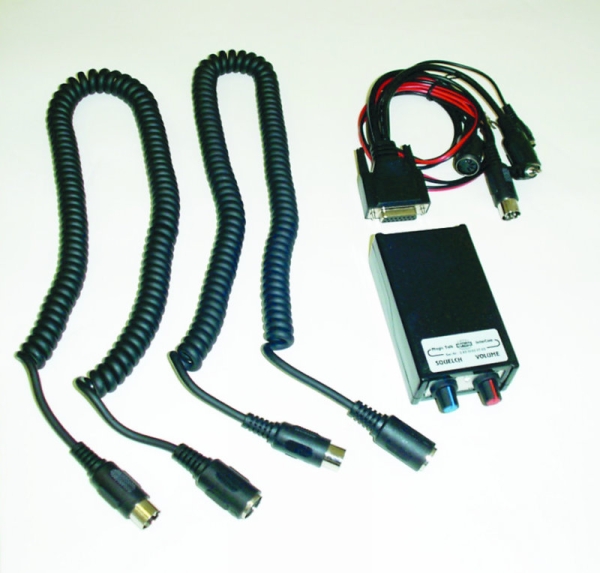

INTERCOM offers duplex intercommunication for rider and passenger, VOX- and PTT-activated PMR radio, GPS voice navigation and listening to music. After presetting the individual volume and microphone response threshold, the control unit operates automatically. There is no need to operate the system while riding, so the device can be permanently installed in the motorcycle. The INTERCOM has two connections for SOFTLINE helmet headsets, which ensure in combination with the HiFi-stereo speakers and a dynamic noise-cancelling near-field microphone the best music and voice reproduction. The modular system allows you to put together your own personal communication system. At the same time, handling remains simple and performance represents first-class quality.
Features
- Duplex intercommunication between rider and passenger
- Extension up to 4 attendees (2-3211)
- Simple presetting of the individual basic volume and microphone response threshold
- VOX-automatic, the microphone is switched on by speech only, while pausing the microphone switches off
- Automatic volume control, the playback volume is automatically raised or lowered according to the ambient noise
- Automatic microphone squelch, the microphone threshold is adjusted to the ambient noise
- Automatic music muting, the music playback is automatically lowered when speech is played
- Excellent noise cancellation of engine and wind noises through professional noise cancelling microphone technology
- Music connection for 3,5 mm headphone output from WM, CD, MP3 and others
- Excelent speech and music reproduction through high fidelity components and loudspeakers
- Optional wireless adapters for more than 200 wireless devices enable both voice-controlled and key-controlled (PTT) radio communication
- Optional connection for built-in radios and CD changers (2-9000)
- Voice recording on dictaphone available
- Interference-free GPS voice navigation
- Integration of BlueTooth and non-BT-capable GPS devices via optional GPS adapters

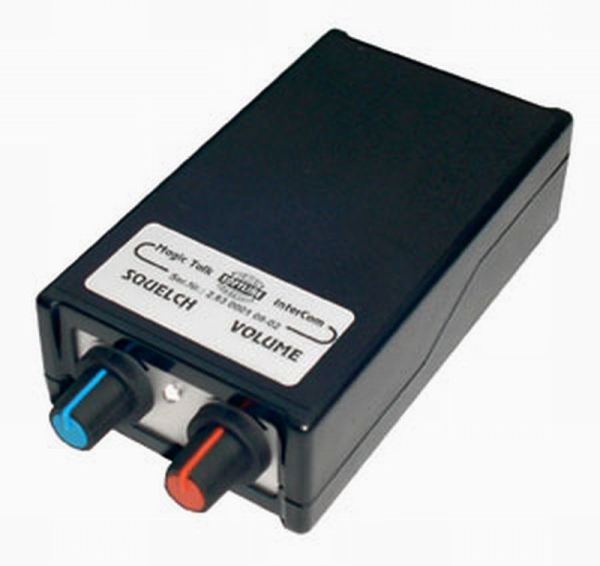

- Splashproof control unit with small dimensions (120 x 60 x 3 0mm) fits into the tail or rear fairing
- Built-in panel jack with protective cap (2-9016) provides a high-quality optical impression and comfortable insertion of the helmet headset connection cables
- Short-circuit-proof cable inputs and outputs, all cables are electromagnetically shielded and protect against interference radiation (e.g. ignition rattling)
- Connection for 12V on-board power supply, supply voltage: 10.8 - 14.8 V DC
Model types
- 2-1000 ‒ InterCom DeLuxe Edition
Wireless application option
Softline offers adapters for more than 100 PMR, LPD and FreeNet radios. Please refer to our reference list.
A selection of the most common models are presented below:
- 2-4901 ‒ Stabo PMR FC500 and Team DualTalk
- 2-4903 ‒ Kenwood LPD Funkey
- 2-4904 ‒ Alan PMR 451 and 456
- 2-4906 ‒ Motorola PMR T5512, T5522, T6222
GPS voice navigation option
- 2-5510 ‒ Garmin Streetpilot III/III+/2610
- 2-5514 ‒ VDO Dayton 4xxx
- 2-5515 ‒ Siemens SX-45 and SX-45i
- 2-5517 ‒ T-Mobile MDA
- 2-5517a ‒ T-Mobile MDA
- 2-5518a ‒ GPS-PDA with 3,5 mm headphone output (stereo jack) for Garmin Zumo 5xx and 6xx
